HE200V10 Relative Humidity Transmitter / Temperature And Humidity Sensor With Display

Name: HE200V10 Relative Humidity Transmitter Temperature And Humidity Sensor With Display
Brand: HUATO
Price: 1 USD

Wholesale HE200V10 Relative Humidity Transmitter / Temperature And Humidity Sensor With Display from china suppliers

Brand Name : HUATO

Model Number : HE200V10

Certification : ISO9001,ISO14001,ISO18001,CE

Place of Origin : Shenzhen ,China

MOQ : negotiable

Price : negotiable

Payment Terms : T/T,paypal,

Supply Ability : 10000pcs/months

Delivery Time : 7-15 working days

Packaging Details : According to customer's requirements

voltage output : 0~5V

temperature measuring : 0~50℃

Theory : temperature humidity transmitter

Material : ABS

Didplay : LCD

Colour : White

Humidity Range : 0~100%RH

temperature accuracy : ±0.5℃

humidity accuracy : ±3%RH

Resolution : 0.1℃/0.1%RH

Contact Now

Industrial voltage Temperature Humidity Sensor 0~10V HE200V10 Transmitter

Introduction:

HE200V10 IS temperature, relative humidity transmitters was developed by HUATO, adopt imported sensors, components and low-power consumption SCM design, which assure the quality and stability. This series are industrial class sensor/transmitter , it can support Voltage output. It has unique design features to ensure that the heat generated by circuit board will not influence the measuring. They can be mounted on wall and enjoy wide measuring range and high accuracy. With this transmitter temperature and humidity signals can be out put by the means of 0~10V voltage . In addition, it has internal probe.

Features:

Adopt import components and high-performance SCM design.

Professional industrial design, avoid the test influence caused by circuit heat.

Enjoy various outputs, 4~20mA/0~5V/0~10V/RS485/Modbus output.

Enjoy patent technique, very easy to install and maintain.

Enjoy high accuracy. Economical and practical.

Product dimensions: 100*100*30mm(3.94"*3.94*1.28"inch)

LCD size: 60*40mm(2.36"*1.57"inch)

Certificate: CE,ISO

Models list and specifications :

Models List

Model	HE200A	HE200A-EX	HE200V5	HE200V5-EX	HE200V10	HE200V10-EX
Temperature Accuracy	±0.5℃	±0.5℃	±0.5℃	±0.5℃	±0.5℃	±0.5℃
Humidity Accuracy	±3%RH	±3%RH	±3%RH	±3%RH	±3%RH	±3%RH
Temperature Range	0~50℃	-30~70℃	0~50℃	-30~70℃	0~50℃	-30~70℃
Humidity Range	0~100%RH	0~100%RH	0~100%RH	0~100%RH	0~100%RH	0~100%RH
Sensor type	Internal	External with 3 meters cable	Internal	External with 3 meters cable	Internal	External with 3 meters cable
Output	4~20mA	4~20mA	0~5V	0~5V	0~10V	0~10V
Wire mode	3 lead terminals		4 lead terminals
Resolution	0.1℃/0.1%RH
Power supply	9V~30V DC
Net weight	280g
Accessory	Operation manual

Models List
Model	HE200M	HE200M-EX	HE200N	HE200N-EX
Temperature Accuracy	±0.5℃	±0.5℃	±0.5℃	±0.5℃
Humidity Accuracy	±3%RH	±3%RH	±3%RH	±3%RH
Temperature Range	0~50℃	-30~70℃	0~50℃	-30~70℃
Humidity Range	0~100%RH	0~100%RH	0~100%RH	0~100%RH
Sensor type	Internal	External with 3 meters cable	Internal	External with 3 meters cable
Output	Modbus	Modbus	RS485	RS485
Wire mode	4lead terminals		4 lead terminals
Resolution	0.1℃/0.1%RH
Power supply	9V~30V DC
Net weight	280g
Accessory	Operation manual

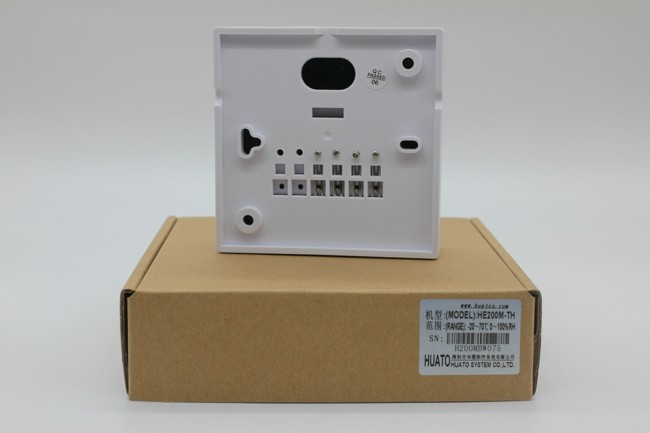

Product pictures

HE200V10 Relative Humidity Transmitter / Temperature And Humidity Sensor With Display

Applications:

HE200 series temperature humidity transmitter desiged for applications in following sectors : pharmacy, chean rooms, ventilation ducts, industrial and vivil sectors, crowded places , canteens, auditoria, gyms, high-density farms, greenhouse , ect .

HE200V10 Relative Humidity Transmitter / Temperature And Humidity Sensor With Display
