HE200V5-EX Temperature Humidity Transmitter Temperature Data Logger With Display

Name: HE200V5EX Temperature Humidity Transmitter Temperature Data Logger With Display
Brand: HUATO
Price: 1 USD

Wholesale HE200V5-EX Temperature Humidity Transmitter Temperature Data Logger With Display from china suppliers

Brand Name : HUATO

Model Number : HE200V5-EX

Certification : ISO9001,ISO14001,ISO18001,CE

Place of Origin : Shenzhen ,China

MOQ : negotiable

Price : negotiable

Payment Terms : T/T,paypal,

Supply Ability : 10000pcs/months

Delivery Time : 7-15 working days

Packaging Details : According to customer's requirements

voltage output : 0~5V

temperature measuring : -30~70℃

Theory : temperature humidity transmitter

Material : ABS

Didplay : LCD

Colour : White

Humidity Range : 0~100%RH

temperature accuracy : ±0.5℃

humidity accuracy : ±3%RH

Resolution : 0.1℃/0.1%RH

Contact Now

Transmitter industrial voltage Temperature Humidity Sensor 0~5V HE200V5-EX

Introduction:

HE200V5-EX is a temperature and humidity transmitter, it was developed by HUATO , the quality and stability is assured because it uses Switzerland imported components and low-power consumption SCM. This is a industrial class transmitter , the output means it supports is voltage. To avoid the influence by the heat generated from the device within. it is a device with wide measuring range and high accuracy and it can be mounted on wall. temperature and humidity signals will be output by 0~5V voltage via this transmitter. What’s more , it equipped with external probe. Below is the datasheet of different devices.

Features:

Uses Switzerland imported sensors and low-power SCM design.

Adopt industrial design, advoid the test influence caused by circuit heat.

Output: 0~5V voltage output.

Enjoy patent technique, very easy to install and maintain.

Enjoy high accuracy. Economical and practical.

Product dimensions: 100*100*30mm(3.94"*3.94*1.28"inch)

LCD size: 60*40mm(2.36"*1.57"inch)

Certificate: CE,ISO

Models list and specifications :

Models List

Model	HE200A	HE200A-EX	HE200V5	HE200V5-EX	HE200V10	HE200V10-EX
Temperature Accuracy	±0.5℃	±0.5℃	±0.5℃	±0.5℃	±0.5℃	±0.5℃
Humidity Accuracy	±3%RH	±3%RH	±3%RH	±3%RH	±3%RH	±3%RH
Temperature Range	0~50℃	-30~70℃	0~50℃	-30~70℃	0~50℃	-30~70℃
Humidity Range	0~100%RH	0~100%RH	0~100%RH	0~100%RH	0~100%RH	0~100%RH
Sensor type	Internal	External with 3 meters cable	Internal	External with 3 meters cable	Internal	External with 3 meters cable
Output	4~20mA	4~20mA	0~5V	0~5V	0~10V	0~10V
Wire mode	3 lead terminals		4 lead terminals
Resolution	0.1℃/0.1%RH
Power supply	9V~30V DC
Net weight	280g
Accessory	Operation manual

Models List
Model	HE200M	HE200M-EX	HE200N	HE200N-EX
Temperature Accuracy	±0.5℃	±0.5℃	±0.5℃	±0.5℃
Humidity Accuracy	±3%RH	±3%RH	±3%RH	±3%RH
Temperature Range	0~50℃	-30~70℃	0~50℃	-30~70℃
Humidity Range	0~100%RH	0~100%RH	0~100%RH	0~100%RH
Sensor type	Internal	External with 3 meters cable	Internal	External with 3 meters cable
Output	Modbus	Modbus	RS485	RS485
Wire mode	4lead terminals		4 lead terminals
Resolution	0.1℃/0.1%RH
Power supply	9V~30V DC
Net weight	280g
Accessory	Operation manual

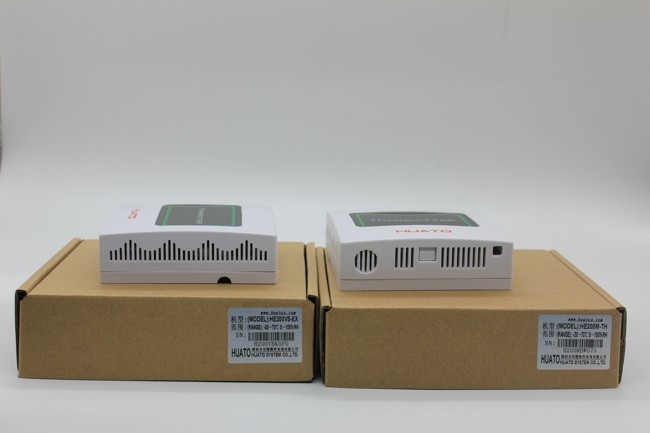

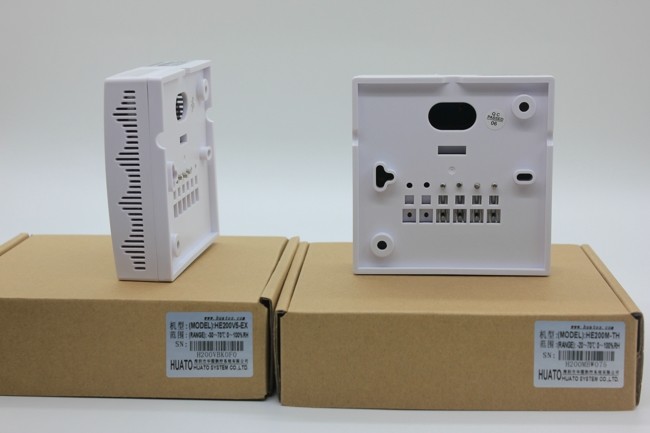

Product pictures

HE200V5-EX Temperature Humidity Transmitter Temperature Data Logger With Display

Applications:

HE200 series temperature humidity transmitter had been widely used in : pharmacy, chean rooms, ventilation ducts, industrial and vivil sectors, crowded places , canteens, auditoria, gyms, high-density farms, greenhouse , ect .
