High Precision Temperature And Humidity Monitor / Humidity Measuring Device

Name: High Precision Temperature And Humidity Monitor Humidity Measuring Device
Brand: HUATO
Price: 1 USD

Wholesale High Precision Temperature And Humidity Monitor / Humidity Measuring Device from china suppliers

Brand Name : HUATO

Model Number : HE400V5-EX

Certification : ISO9001,ISO14001,ISO18001,CE

Place of Origin : Shenzhen ,China

MOQ : negotiable

Price : negotiable

Payment Terms : T/T,paypal,

Supply Ability : 10000pcs/months

Delivery Time : 7-15 working days

Packaging Details : According to customer's requirements

voltage output : 0~5V

Theory : temperature humidity transmitter

Didplay : LCD

Colour : White

Humidity Range : 0~100%RH

temperature accuracy : ±0.5℃

humidity accuracy : ±3%RH

Resolution : 0.1℃/0.1%RH

temperature range : -30~70℃

power supply : 16~30V

Contact Now

Transmitter voltage Temperature Humidity Sensor 0~5V output HE400V5-EX

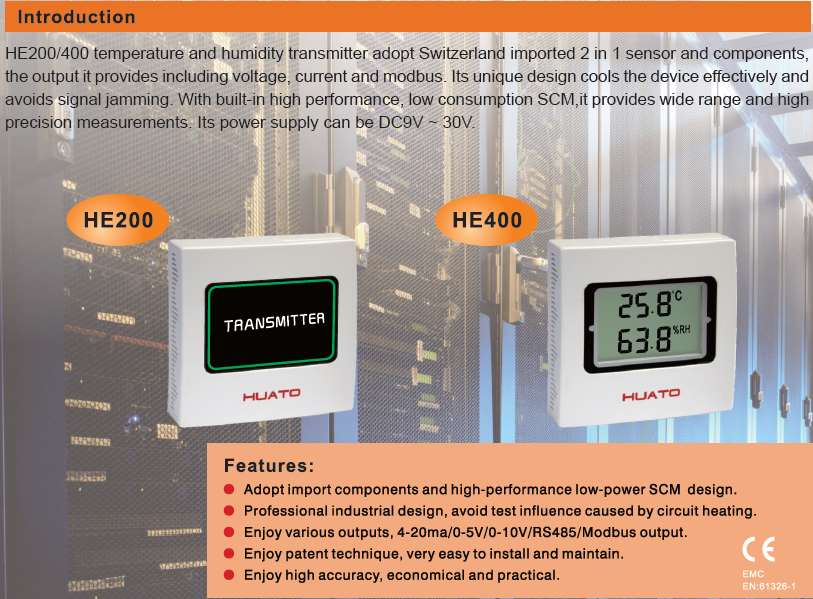

Introduction:

HE400V5-EX a HUATO transmitter that turns emperature and humidity signals into voltage signals. it adopt high-performance sensors from Switzerland ,the stability is guaranteed . This series transmitter supports four kinds of output, RS485 and Standard Modbus protocol/ Voltage and Current and this model support voltage output. It has a special design features to get rid of the heat influence of the circuit. Its measuring range is wide , and accuracy is high . All HUATO HE400 series equipped with a LCD display , which simultaneously displays the temperature and humidity value. it has external probe. You can choose the right model according to the datasheet below.

Features:

It uses external sensor and high-performance low-power SCM design.
It adopt Industrial design, effectively advoid the heat influence generated from within.
Various outputs 4~20mA/0~5V/0~10V/RS485/Modbus user selectable.
Install and maintain and use is easy.
It is a high accuracy, practical device.
Dimensions : 100*100*30mm(3.94"*3.94*1.28"inch)
LCD size: 60*40mm(2.36"*1.57"inch)
Certificates this product acquired : CE,ISO

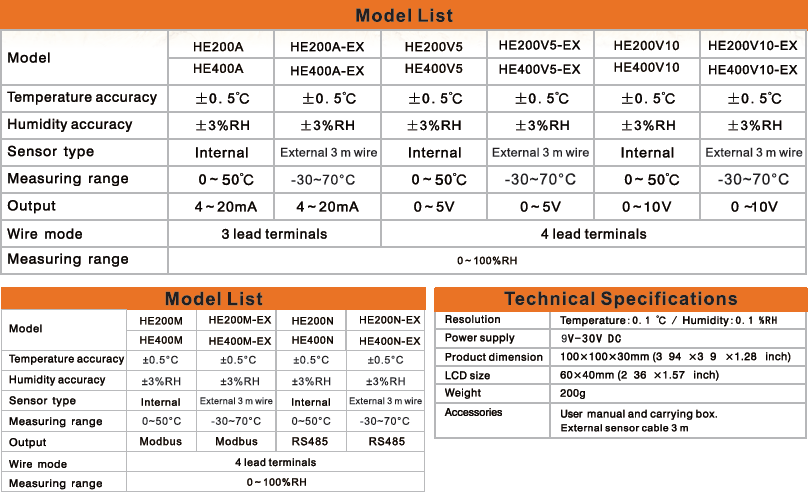

Models list and specifications :


Model	HE400A	HE400A-EX	HE400V5	HE400V5-EX	HE400V10	HE400V10-EX
Temperature Accuracy	±0.5℃
Humidity Accruacy	±3%RH
Temperature Range	0~50℃	-30~70℃	0~50℃	-30~70℃	0~50℃	-30~70℃
Humidity Range	0~100%RH
Sensor type	Internal	External with 3 meters cable	Internal	External with 3 meters cable	Internal	External with 3 meters cable
Output	4~20mA		0~5V		0~10V
Wire mode	3 lead terminals		4 lead terminals
Resolution	0.1℃/0.1%RH
Power supply	9V~30V DC
Net weight	280g
Accessory	Operation manual

Model List(modbus/RS 485)
Model	HE400M	HE400M-EX	HE400N	HE400N-EX
Temperature Accuracy	±0.5℃
Humidity Accruacy	±3%RH
Temperature Range	0~50℃	-30~70℃	0~50℃	-30~70℃
Humidity Range	0~100%RH
Sensor type	Internal	External with 3 meters cable	Internal	External with 3 meters cable
Output	Modbus		RS485
Wire mode	4lead terminals
Resolution	0.1℃/0.1%RH
Power supply	9V~30V DC
Net weight	280g
Accessory	Operation manual

Product pictures
High Precision Temperature And Humidity Monitor / Humidity Measuring Device

High Precision Temperature And Humidity Monitor / Humidity Measuring Device

High Precision Temperature And Humidity Monitor / Humidity Measuring Device

Applications:

HE400 series temperature humidity transmitter has been widely use in the following sectors : pharmacy , chean rooms, ventilation ducts, industrial and vivil sectors, crowded places , canteens, auditoria, gyms, high-density farms, greenhouse , ect .

High Precision Temperature And Humidity Monitor / Humidity Measuring Device
