Low Power SCM Temperature Humidity Transmitter / Temperature Humidity Sensor

Name: Low Power SCM Temperature Humidity Transmitter Temperature Humidity Sensor
Brand: HUATO
Price: 1 USD

Wholesale Low Power SCM Temperature Humidity Transmitter / Temperature Humidity Sensor from china suppliers

Brand Name : HUATO

Model Number : HE400N

Certification : ISO9001,ISO14001,ISO18001,CE

Place of Origin : Shenzhen ,China

MOQ : negotiable

Price : negotiable

Payment Terms : T/T,paypal,

Supply Ability : 10000pcs/months

Delivery Time : 7-15 working days

Packaging Details : According to customer's requirements

voltage output : 0~5V

Theory : temperature humidity transmitter

Didplay : LCD

Humidity Range : 0~100%RH

temperature accuracy : ±0.5℃

Resolution : 0.1℃/0.1%RH

temperature range : -30~70℃

power supply : 16~30V

input means : RS485

Contact Now

Transmitter industrial voltage Temperature Humidity Sensor RS485 input HE400N

Introduction:

HE400N transmitter can help to output temperature, relative humidity signals via RS485 protocol , the quality and stability is excellent. This transmitter adopt high-performance sensors and low-power SCM. This transmitter supports RS485 output, other output means like Modbus protocol/ Voltage and Current output are optional . It design with a unique features to avoid the influence of heat. It enjoy wide measuring range and high accuracy. The HE400 series temperature and humidity transmitter all equipped with LCD display , it displays temperature and humidity value. What is more, it has internal sensor. Customers can choose the models needed from the datasheet below.

Features:

Uses high-performance low-power SCM.
Professional industrial design, advoid circuit heat.

4~20mA/0~5V/0~10V/RS485/Modbus output means user selectable.

It is Very easy to install and maintain this device .

High accuracy and practical.

Product dimensions: 100*100*30mm(3.94"*3.94*1.28"inch)

LCD dimensions : 60*40mm(2.36"*1.57"inch)

Product’s Certificate: CE,ISO

Models list and specifications :


Model	HE400A	HE400A-EX	HE400V5	HE400V5-EX	HE400V10	HE400V10-EX
Temperature Accuracy	±0.5℃
Humidity Accruacy	±3%RH
Temperature Range	0~50℃	-30~70℃	0~50℃	-30~70℃	0~50℃	-30~70℃
Humidity Range	0~100%RH
Sensor type	Internal	External with 3 meters cable	Internal	External with 3 meters cable	Internal	External with 3 meters cable
Output	4~20mA		0~5V		0~10V
Wire mode	3 lead terminals		4 lead terminals
Resolution	0.1℃/0.1%RH
Power supply	9V~30V DC
Net weight	280g
Accessory	Operation manual

Model List(modbus/RS 485)
Model	HE400M	HE400M-EX	HE400N	HE400N-EX
Temperature Accuracy	±0.5℃
Humidity Accruacy	±3%RH
Temperature Range	0~50℃	-30~70℃	0~50℃	-30~70℃
Humidity Range	0~100%RH
Sensor type	Internal	External with 3 meters cable	Internal	External with 3 meters cable
Output	Modbus		RS485
Wire mode	4lead terminals
Resolution	0.1℃/0.1%RH
Power supply	9V~30V DC
Net weight	280g
Accessory	Operation manual

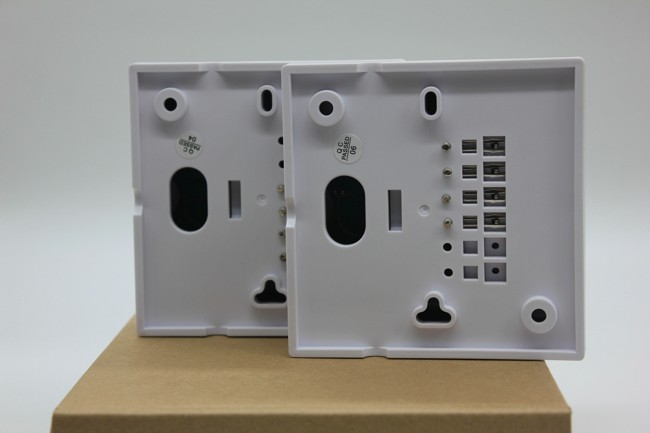

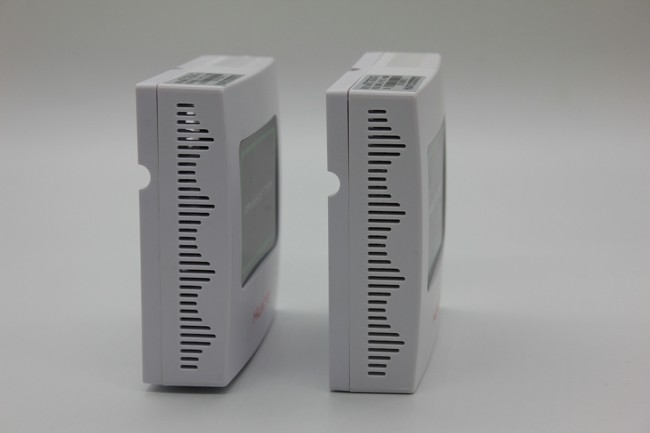

Product pictures

Low Power SCM Temperature Humidity Transmitter / Temperature Humidity Sensor

Applications:

HE400 series can be use in use in : pharmacy , chean rooms, ventilation ducts, industrial and vivil sectors, crowded places , canteens, auditoria, gyms, high-density farms, greenhouse , ect .
