CE / ISO Approved Temperature Humidity Transmitter Room Humidity Sensor

Name: CE ISO Approved Temperature Humidity Transmitter Room Humidity Sensor
Brand: HUATO
Price: 1 USD

Wholesale CE / ISO Approved Temperature Humidity Transmitter Room Humidity Sensor from china suppliers

Brand Name : HUATO

Model Number : HE400V10-EX

Certification : ISO9001,ISO14001,ISO18001,CE

Place of Origin : Shenzhen ,China

MOQ : negotiable

Price : negotiable

Payment Terms : T/T,paypal,

Supply Ability : 10000pcs/months

Delivery Time : 7-15 working days

Packaging Details : According to customer's requirements

voltage output : 0~10V

Theory : temperature humidity transmitter

Didplay : LCD

Colour : White

Humidity Range : 0~100%RH

temperature accuracy : ±0.5℃

humidity accuracy : ±3%RH

Resolution : 0.1℃/0.1%RH

temperature range : -30~70℃

power supply : 16~30V

Contact Now

Industrial Transmitter voltage Temperature Humidity Sensor 0~10V input HE400V10-EX

Introduction:

The HE400V10-EX transmitter helps to turn temperature and humidity signal into voltage signal . it adopt Switzerland imported sensors and industrial SCM design ,the quality ,stability is guaranteed . This transmitter supports 0~10V Voltage output. We give it a special design features for the elimination of the heat from the circuit. It s measuring range is wide and it’s wall mountable, and accuracy is high. HUATO HE400 series equipped with LCD display , temperature and humidity value can be show on display simultaneously. it equipped with an external probe. The datasheet below may help you to choose the models you need.

Features:

Equipped with external sensor.
Adopt Industrial design, effectively eliminate the influence of heat generated from within.
Output , 0~10V voltage output.
It is very easy to install.
It is a high accuracy durable and practical device.
Dimensions : 100*100*30mm(3.94"*3.94*1.28"inch)
LCD size: 60*40mm(2.36"*1.57"inch)
Certificate : CE,ISO

Models list and specifications :


Model	HE400A	HE400A-EX	HE400V5	HE400V5-EX	HE400V10	HE400V10-EX
Temperature Accuracy	±0.5℃
Humidity Accruacy	±3%RH
Temperature Range	0~50℃	-30~70℃	0~50℃	-30~70℃	0~50℃	-30~70℃
Humidity Range	0~100%RH
Sensor type	Internal	External with 3 meters cable	Internal	External with 3 meters cable	Internal	External with 3 meters cable
Output	4~20mA		0~5V		0~10V
Wire mode	3 lead terminals		4 lead terminals
Resolution	0.1℃/0.1%RH
Power supply	9V~30V DC
Net weight	280g
Accessory	Operation manual

Model List(modbus/RS 485)
Model	HE400M	HE400M-EX	HE400N	HE400N-EX
Temperature Accuracy	±0.5℃
Humidity Accruacy	±3%RH
Temperature Range	0~50℃	-30~70℃	0~50℃	-30~70℃
Humidity Range	0~100%RH
Sensor type	Internal	External with 3 meters cable	Internal	External with 3 meters cable
Output	Modbus		RS485
Wire mode	4lead terminals
Resolution	0.1℃/0.1%RH
Power supply	9V~30V DC
Net weight	280g
Accessory	Operation manual

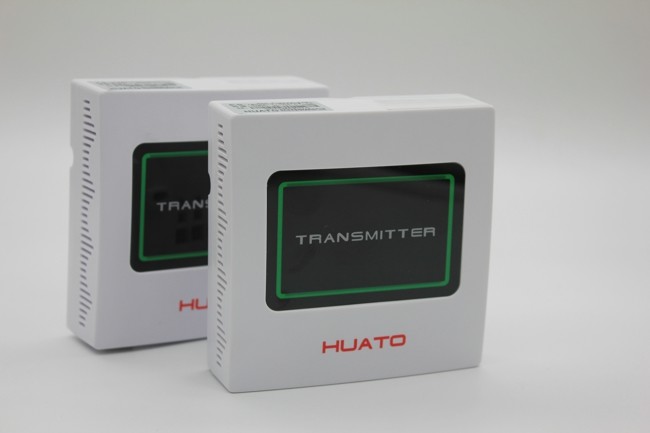

Product pictures

CE / ISO Approved Temperature Humidity Transmitter Room Humidity Sensor

Applications:

HE400 series temperature humidity transmitter desiged for control in the following sectors : pharmacy , chean rooms, ventilation ducts, industrial and vivil sectors, crowded places , canteens, auditoria, gyms, high-density farms, greenhouse , ect .

CE / ISO Approved Temperature Humidity Transmitter Room Humidity Sensor
