High Accurate Humidity Meter Instrument To Measure Relative Humidity Easy Install

Name: High Accurate Humidity Meter Instrument To Measure Relative Humidity Easy Install
Brand: HUATO
Price: 1 USD

Wholesale High Accurate Humidity Meter Instrument To Measure Relative Humidity Easy Install from china suppliers

Brand Name : HUATO

Model Number : HE200N-EX

Certification : ISO9001,ISO14001,ISO18001,CE

Place of Origin : Shenzhen ,China

MOQ : negotiable

Price : negotiable

Payment Terms : T/T,paypal,

Supply Ability : 10000pcs/months

Delivery Time : 7-15 working days

Packaging Details : According to customer's requirements

output : RS485

temperature measuring : -30~70℃

Theory : temperature humidity transmitter

Material : ABS

Colour : White

Humidity Range : 0~100%RH

temperature accuracy : ±0.5℃

humidity accuracy : ±3%RH

Resolution : 0.1℃/0.1%RH

Contact Now

Transmitter digital temperature Humidity external Sensor modbus HE200N-EX

Introduction:

HE200N-EX is a temperature and humidity transmitter, it uses imported sensors, components and high-performance SCM design. This series are industrial class transmitter . To avoid the influence of circuit heat generated within the device, unique design was given to this device to avoid the influence of heat. it enjoy wide measuring range and high accuracy. With this transmitter temperature, relative humidity signals can be output by RS484 . what is more , it has external probe. Please choose the model you want buy using the following datasheet.

Features:

It uses imported sensor and low-power consumption SCM .

Adopt design to avoid influence caused by circuit heat.

Output: modbus .

Easy to install and maintain.

Highly accurate and Economical

Product dimensions: 100*100*30mm(3.94"*3.94*1.28"inch)

LCD size: 60*40mm(2.36"*1.57"inch)

Certificates : CE,ISO

Models list and specifications :

Models List

Model	HE200A	HE200A-EX	HE200V5	HE200V5-EX	HE200V10	HE200V10-EX
Temperature Accuracy	±0.5℃	±0.5℃	±0.5℃	±0.5℃	±0.5℃	±0.5℃
Humidity Accuracy	±3%RH	±3%RH	±3%RH	±3%RH	±3%RH	±3%RH
Temperature Range	0~50℃	-30~70℃	0~50℃	-30~70℃	0~50℃	-30~70℃
Humidity Range	0~100%RH	0~100%RH	0~100%RH	0~100%RH	0~100%RH	0~100%RH
Sensor type	Internal	External with 3 meters cable	Internal	External with 3 meters cable	Internal	External with 3 meters cable
Output	4~20mA	4~20mA	0~5V	0~5V	0~10V	0~10V
Wire mode	3 lead terminals		4 lead terminals
Resolution	0.1℃/0.1%RH
Power supply	9V~30V DC
Net weight	280g
Accessory	Operation manual

Models List
Model	HE200M	HE200M-EX	HE200N	HE200N-EX
Temperature Accuracy	±0.5℃	±0.5℃	±0.5℃	±0.5℃
Humidity Accuracy	±3%RH	±3%RH	±3%RH	±3%RH
Temperature Range	0~50℃	-30~70℃	0~50℃	-30~70℃
Humidity Range	0~100%RH	0~100%RH	0~100%RH	0~100%RH
Sensor type	Internal	External with 3 meters cable	Internal	External with 3 meters cable
Output	Modbus	Modbus	RS485	RS485
Wire mode	4lead terminals		4 lead terminals
Resolution	0.1℃/0.1%RH
Power supply	9V~30V DC
Net weight	280g
Accessory	Operation manual

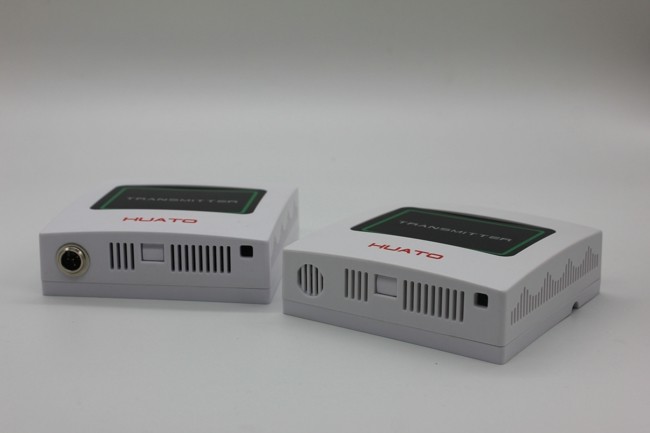

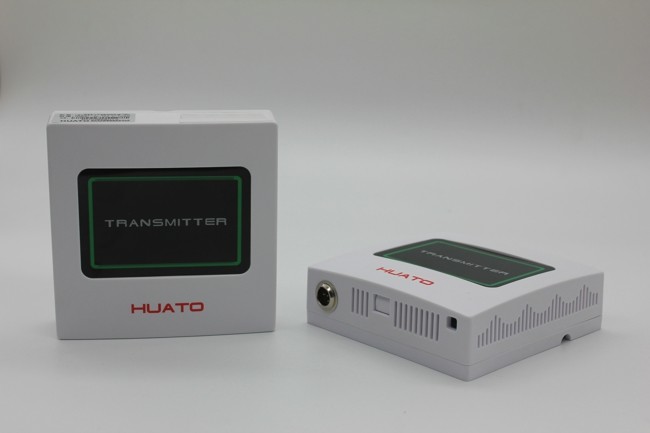

Product pictures

High Accurate Humidity Meter Instrument To Measure Relative Humidity Easy Install

Applications:

HE200 series temperature humidity transmitter can be use in fileids like : pharmacy, chean rooms, industrial and vivil sectors, crowded places , canteens, auditoria, gyms, high-density farms, greenhouse , ect .
