Durable Relative Humidity Transmitter , Temperature Sensor Transmitter

Name: Durable Relative Humidity Transmitter Temperature Sensor Transmitter
Brand: HUATO
Price: 1 USD

Wholesale Durable Relative Humidity Transmitter , Temperature Sensor Transmitter from china suppliers

Brand Name : HUATO

Model Number : HE400M-EX

Certification : ISO9001,ISO14001,ISO18001,CE

Place of Origin : Shenzhen ,China

MOQ : negotiable

Price : negotiable

Payment Terms : T/T,paypal,

Supply Ability : 10000pcs/months

Delivery Time : 7-15 working days

Packaging Details : According to customer's requirements

Theory : temperature humidity transmitter

Material : ABS

Didplay : LCD

Colour : White

Humidity Range : 0~100%RH

temperature accuracy : ±0.5℃

humidity accuracy : ±3%RH

Resolution : 0.1℃/0.1%RH

output means : modbus

Contact Now

digital Transmitter Temperature Humidity external Sensor modbus HE400M-EX

Introduction:

HE400M-EX is a transmitter. It helps to turn temperature humidity signing into modbus standard signals. it uses high-performance sensors from Switzerland, the quality and stability is excellent. This transmitter supports Modbus protocol output. A special design features was given to it to eliminate the circuit heat influence. It can be mounted on wall and its measuring range is wide , and accuracy is high . the HUATO HE400 series transmitter equipped with a large screen LCD display to show temperature and humidity value. it has an external probe. The datasheet below includes all models which helps you to choose the models you need.

Features:
Adopt external sensor and high-performance low-power SCM.
Industrial design, advoid the influence generated from within.
Support various outputs, 4~20mA/0~5V/0~10V/RS485/Modbus.
Install and maintain is very easy.
It is a high accuracy Economical and durable device.
Dimensions : 10010030mm(3.94"3.941.28"inch)
LCD: 6040mm(2.36"1.57"inch)
Certificates acquired : CE,ISO

Models list and specifications :


Model	HE400A	HE400A-EX	HE400V5	HE400V5-EX	HE400V10	HE400V10-EX
Temperature Accuracy	±0.5℃
Humidity Accruacy	±3%RH
Temperature Range	0~50℃	-30~70℃	0~50℃	-30~70℃	0~50℃	-30~70℃
Humidity Range	0~100%RH
Sensor type	Internal	External with 3 meters cable	Internal	External with 3 meters cable	Internal	External with 3 meters cable
Output	4~20mA		0~5V		0~10V
Wire mode	3 lead terminals		4 lead terminals
Resolution	0.1℃/0.1%RH
Power supply	9V~30V DC
Net weight	280g
Accessory	Operation manual

Model List(modbus/RS 485)
Model	HE400M	HE400M-EX	HE400N	HE400N-EX
Temperature Accuracy	±0.5℃
Humidity Accruacy	±3%RH
Temperature Range	0~50℃	-30~70℃	0~50℃	-30~70℃
Humidity Range	0~100%RH
Sensor type	Internal	External with 3 meters cable	Internal	External with 3 meters cable
Output	Modbus		RS485
Wire mode	4lead terminals
Resolution	0.1℃/0.1%RH
Power supply	9V~30V DC
Net weight	280g
Accessory	Operation manual

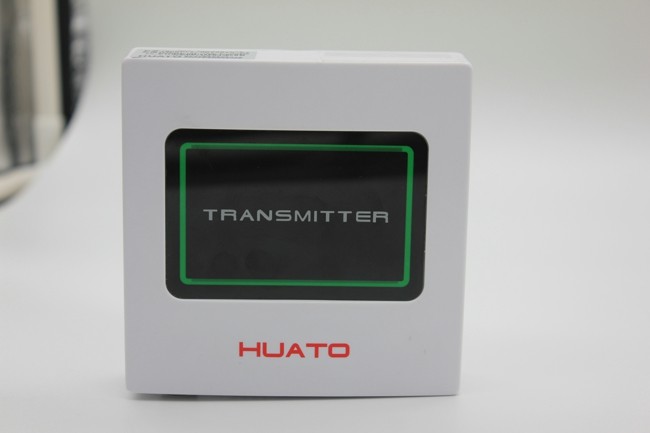

Product pictures

Durable Relative Humidity Transmitter , Temperature Sensor Transmitter

Applications:

HE400 series temperature humidity transmitterhas been widely used in following industries like : pharmacy, chean rooms, ventilation ducts, industrial and vivil sectors, crowded places , canteens, auditoria, gyms, high-density farms, greenhouse , ect .
Durable Relative Humidity Transmitter , Temperature Sensor Transmitter
