Unique Design Temperature And Humidity Monitor 0~5V Voltage Output HE400V5

Name: Unique Design Temperature And Humidity Monitor 05V Voltage Output HE400V5
Brand: HUATO
Price: 1 USD

Wholesale Unique Design Temperature And Humidity Monitor 0~5V Voltage Output HE400V5 from china suppliers

Brand Name : HUATO

Model Number : HE400V5

Certification : ISO9001,ISO14001,ISO18001,CE

Place of Origin : Shenzhen ,China

MOQ : negotiable

Price : negotiable

Payment Terms : T/T,paypal,

Supply Ability : 10000pcs/months

Delivery Time : 7-15 working days

Packaging Details : According to customer's requirements

voltage output : 0~5V

Theory : temperature humidity transmitter

Material : ABS

Didplay : LCD

Colour : White

Humidity Range : 0~100%RH

temperature accuracy : ±0.5℃

humidity accuracy : ±3%RH

Resolution : 0.1℃/0.1%RH

temperature range : 0~50℃

Contact Now

Transmitter voltage Temperature Humidity Sensor 0~5V HE400V5

Introduction:

HE400V5 is a temperature, relative humidity transmitter. it adopt high-performance sensors and low-power SCM. This transmitter supports 0~5V voltage output . It adopt unique design features to avoid the influence of the heat generated within. They are high accuracy and measuring range is wide. HE400 series has LCD display , which displays temperature and humidity value simultaneously. In addition, it has internal sensor. Customers can choose models according to their demands.

Features:

Uses imported high-performance low-power SCM design.
Adopt industrial design, advoid the influence caused by circuit heat.
Outputs: 0~5V voltage output.
It is very easy to install and maintain.
High accuracy. Economical and practical.
Dimensions: 100*100*30mm(3.94"*3.94*1.28"inch)
LCD size: 60*40mm(2.36"*1.57"inch)
Product’s Certificates: CE,ISO

Models list and specifications :


Model	HE400A	HE400A-EX	HE400V5	HE400V5-EX	HE400V10	HE400V10-EX
Temperature Accuracy	±0.5℃
Humidity Accruacy	±3%RH
Temperature Range	0~50℃	-30~70℃	0~50℃	-30~70℃	0~50℃	-30~70℃
Humidity Range	0~100%RH
Sensor type	Internal	External with 3 meters cable	Internal	External with 3 meters cable	Internal	External with 3 meters cable
Output	4~20mA		0~5V		0~10V
Wire mode	3 lead terminals		4 lead terminals
Resolution	0.1℃/0.1%RH
Power supply	9V~30V DC
Net weight	280g
Accessory	Operation manual

Model List(modbus/RS 485)
Model	HE400M	HE400M-EX	HE400N	HE400N-EX
Temperature Accuracy	±0.5℃
Humidity Accruacy	±3%RH
Temperature Range	0~50℃	-30~70℃	0~50℃	-30~70℃
Humidity Range	0~100%RH
Sensor type	Internal	External with 3 meters cable	Internal	External with 3 meters cable
Output	Modbus		RS485
Wire mode	4lead terminals
Resolution	0.1℃/0.1%RH
Power supply	9V~30V DC
Net weight	280g
Accessory	Operation manual

Product pictures

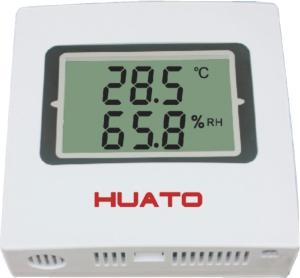

Unique Design Temperature And Humidity Monitor 0~5V Voltage Output HE400V5

Applications:

HE400 series temperature humidity transmitter desiged for control in the following sectors : pharmacy , chean rooms, ventilation ducts, industrial and vivil sectors, crowded places , canteens, auditoria, gyms, high-density farms, greenhouse , ect .

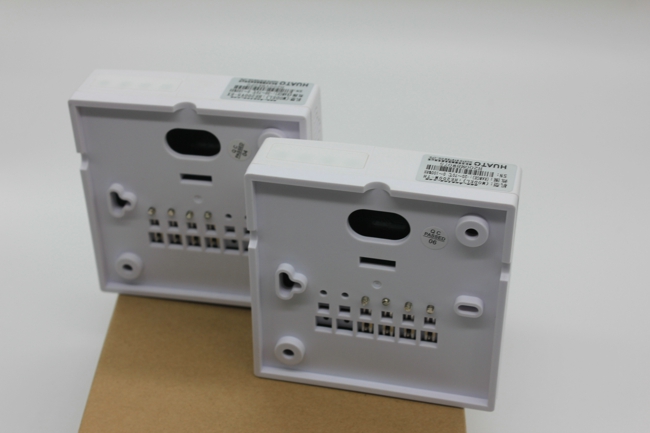

Unique Design Temperature And Humidity Monitor 0~5V Voltage Output HE400V5

Factory
