HE400A Temperature Humidity Transmitter Instrument To Measure Humidity

Name: HE400A Temperature Humidity Transmitter Instrument To Measure Humidity
Brand: HUATO
Price: 1 USD

Wholesale HE400A Temperature Humidity Transmitter Instrument To Measure Humidity from china suppliers

Brand Name : HUATO

Model Number : HE400A

Certification : ISO9001,ISO14001,ISO18001,CE

Place of Origin : Shenzhen ,China

MOQ : negotiable

Price : negotiable

Payment Terms : T/T,paypal,

Supply Ability : 10000pcs/months

Delivery Time : 7-15 working days

Packaging Details : According to customer's requirements

current output : 4~20mA

Theory : temperature humidity transmitter

Material : ABS

Didplay : LCD

Colour : White

Humidity Range : 0~100%RH

temperature accuracy : ±0.5℃

humidity accuracy : ±3%RH

Resolution : 0.1℃/0.1%RH

Contact Now

Current Temperature Humidity Sensor 4~20mA HE400A Transmitter

Introduction:
HE400A is temperature, relative humidity transmitter, the quality and stability is assured . it adopt high-performance sensors and low-power SCM design. This transmitter supports four kinds of output, RS485 and Standard Modbus protocol/ Voltage and Current. It has unique design features to avoid the influence of the heat generated within. They are wall-mounted and enjoy wide measuring range and high accuracy. HE400 series temperature and humidity transmitter has LCD display , it displays temperature and humidity value simultaneously. In addition, it is equipped with internal sensor. Customers can have many choices according to their demands.

Features:

Adopt import components and high-performance low-power SCM design.
Professional industrial design, advoid the influence caused by circuit heat.
Outputs support 4~20mA current .
Enjoy patent technique, very easy to install and maintain.
Enjoy high accuracy. Economical and practical.
Product dimensions: 100*100*30mm(3.94"*3.94*1.28"inch)
LCD size: 60*40mm(2.36"*1.57"inch)
Product’s Certificate: CE,ISO

Models list and specifications :


Model	HE400A	HE400A-EX	HE400V5	HE400V5-EX	HE400V10	HE400V10-EX
Temperature Accuracy	±0.5℃
Humidity Accruacy	±3%RH
Temperature Range	0~50℃	-30~70℃	0~50℃	-30~70℃	0~50℃	-30~70℃
Humidity Range	0~100%RH
Sensor type	Internal	External with 3 meters cable	Internal	External with 3 meters cable	Internal	External with 3 meters cable
Output	4~20mA		0~5V		0~10V
Wire mode	3 lead terminals		4 lead terminals
Resolution	0.1℃/0.1%RH
Power supply	9V~30V DC
Net weight	280g
Accessory	Operation manual

Model List(modbus/RS 485)
Model	HE400M	HE400M-EX	HE400N	HE400N-EX
Temperature Accuracy	±0.5℃
Humidity Accruacy	±3%RH
Temperature Range	0~50℃	-30~70℃	0~50℃	-30~70℃
Humidity Range	0~100%RH
Sensor type	Internal	External with 3 meters cable	Internal	External with 3 meters cable
Output	Modbus		RS485
Wire mode	4lead terminals
Resolution	0.1℃/0.1%RH
Power supply	9V~30V DC
Net weight	280g
Accessory	Operation manual

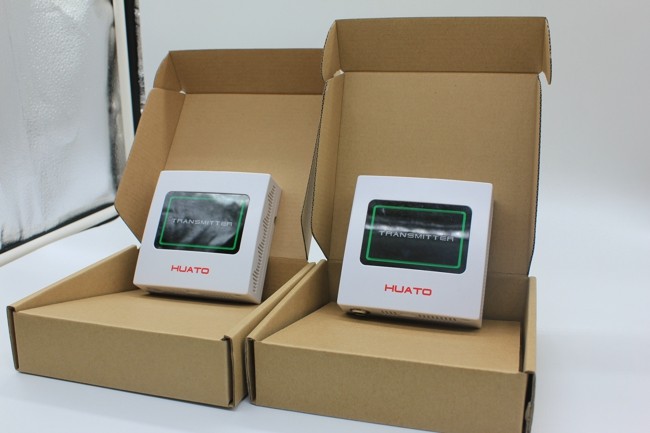

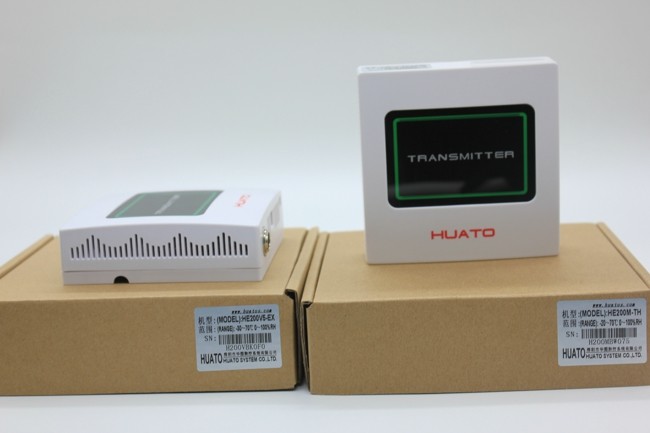

Product pictures

Applications:

HE400 series temperature humidity transmitter desiged for control in conditioning and ventilation application in following sectors : pharmacy, chean rooms, ventilation ducts, industrial and vivil sectors, crowded places , canteens, auditoria, gyms, high-density farms, greenhouse , ect .

Factory

Product Tags:

remote temperature transmitter

relative humidity transmitter

HE400A Temperature Humidity Transmitter Instrument To Measure Humidity Images
