Real time environment monitor WIFI data logger
Applications
Widely applied in laboratory fields, food industry, medical industry,pharmaceutical fields, electrical industry, environmental protection,warehouse and agricultural etc.
Environmental Monitoring
Autonomous data loggers can be taken to diverse locations that cannot easily support fixed temperature monitoring equipment. These might include: mountains, deserts, jungles, mines, ice flows, caves, etc. Portable data loggers are also used in industry and laboratory situations where stand-alone recording is desired.
Monitor Shipments
Temperature sensitive products such as foods, pharmaceuticals, and some chemicals are often monitored during shipment and logistics operations. Exposure to temperatures outside of an acceptable range, for a critical time period, can degrade the product or shorten shelf life. Regulations and contracts make temperature monitoring mandatory for some products.
Model list | Model | Sensor type | Measureing Range | Accuracy | Record Capacity |
| S500-EX-WiFi | External temperature &humidity sensor | -40~85℃/0~100%RH | ±0.5℃/±5%RH | 6,5000 |
| S500-ET-WiFI | Single external temperature sensor | -40~+85℃ | ±0.5℃ |
| S500-DT-WiFi | Dual external temperature sensor | -40~+85℃ | ±0.5℃ |
| S500-EPT-WiFi | Single external PT100 sensor | -100~+100℃ | ±0.5℃ |
| S500-DPT-WiFi | Dual external PT100 sensor | -100~+100℃ | ±0.5℃ |
There are many monitoring base station in this system, it adopt TCP/IP protocol to ensure networking reliability and use Ethernet and wireless hybrid networking. The base station collects data and transmit it to Tomonitor server in real-time.

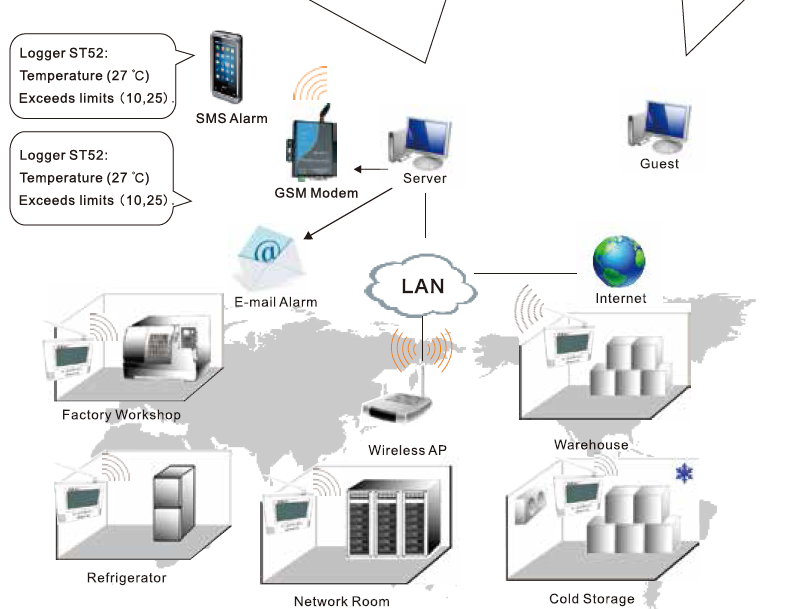

This system adopt client/server framework, it will not be affected when some monitoring points are out of order. We greatly improved system reliability by unite monitoring, independent measurement and control. Below is the network topology of this system.
