zigbee wirelessly temperature monitor network and data logger with industrial K type probe
Introduction:
S400W-EK devices acquire the data of temperature then transimission data via zigbee wirelessly.
use together with a HE2400 receiver station, which receive the data from the S400W wirelessly and tranfer to monitor computer by RJ45 net wired.
This is a real time monitoring system solution and data logger for temperature.
Data transimission by Zigbee wireless, which is more stable and Anti-interference
Industrial K type sensor (Probe)
Features:
1 Not as the traditional item, the wireless temperature and humidity recorder can meet the fast working speed.
The most important thing is that can acquire remote real-time monitoring in 24 hours of unattended environment.
Just put a receiver in the office, through the zigbee 2.4G wireless network and monitoring software in PC,
2 You can easily sit in the office to see and check the changes of temperature and humidity in each environment clearly,
3 Not only real-time monitoring, also can query history data,
4 When the temperature and humidity data exceed the MAX/MIN limit, Its automatic alarm .
Specifications:
| Model | S400W-EK |
| Temperature Accuracy | ±(1 + 2‰ ℃) |
| Temperature Measurement Range | -200~+260℃ |
| Humidity Range | 0~100%RH |
| Sensor type | EXternal K type sensor |
| Resolution | 0.1°C / 0.1%RH |
| Automatic Record Capacity | 8192 records |
| Power | 1.5V AA battery*4 / DC9V - 12V adapter |
| Logging rate | 2s to 24 hours |
| Dimensions | 90mm * 87mm * 44mm |
| Accessories | Battery, user manual, solftware |
Technical support:
All the temperature sensor we used are original imported from USA and all the temperature&humidity sensors are original imported from Switzerland.All the IC we used are top brand worldwide.So quality and safety are guaranteed.
We have software copyright certification we can develop unique design for you!
Instruments

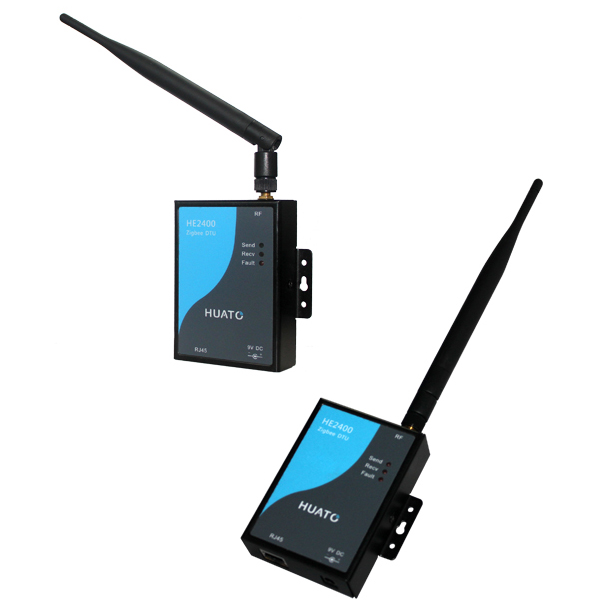

Wireless data receiver station, ( wireless transfer to wired and connected with monitor computer )
Applications:
Widely ues in air conditioning system, clean room, filter resistance, flow testing of discharge duct, air speed ,
hydraulic system pressure and automatic value as well as health care equipment respiratory monitoring fileds etc.
