Advanced Tcp Ip Data Logger With External Temperature Sensor S500-EPT-RJ45

Name: Advanced Tcp Ip Data Logger With External Temperature Sensor S500EPTRJ45
Brand: Huato
Price: 1 USD

Wholesale Advanced Tcp Ip Data Logger With External Temperature Sensor S500-EPT-RJ45 from china suppliers

Brand Name : Huato

Model Number : S500-EPT-RJ45

Certification : CE

Place of Origin : Made In China

MOQ : 1unit -80℃ Freezer Real Time Temperature monitor TCP IP Data Logger with external Temperature Sensor Huato S500-EPT-RJ45

Price : negotiable

Payment Terms : T/T, Western Union, Paypal, RMB

Supply Ability : 5000units per month

Delivery Time : 1 working day after payment received

Packaging Details : Standard Carton Box

Item : -80℃ Freezer Real Time Temperature monitor TCP IP Data Logger with external Temperature Sensor Huato S500-EPT-RJ45

Type of Sensor : External Temperature Sensor

Advantage of S500-TH-RJ45 : data uploading to server fast, stable and price economic

Equipped with : Battery+Plastic Screw Bag+ CD including User Manual and Software

Temperature Measurement Range : -200~200c

Recording Capacity : 43000 readings

Advantages : Data uploading to server very stable, very fast, and price very economic

Display : LCD

Contact Now

-80℃ Freezer Real Time Temperature monitor TCP IP Data Logger with external Temperature Sensor Huato S500-EPT-RJ45

Introduction

S500-EPT-RJ45 real time monitoring system is an easy-to-read and economical way to track temperature and humidity. It has been widely used in the medical industry, electronic industry, food industry, the transport industry, the meteorological industry, textile industry, HVAC refrigeration, file management, agricultural research, biochemistry lab as well as hospitality industry and food and beverage business.

Advantages

RJ45 interface, data via ethernet upload to PC service.
Automatic Record function, mass storage function: 4,3000
Log interval : 2 seconds to 24 hours
Built-in sound & light alarm, when the data exceed ,device will alarm.
Power supplies: 9V battery/ 12VDC adapter
Easy to operate, can be placed on desk or mounted on wall.
MAX/MIN function key to read the max/min value
Deviation calibrate the instrument.
Dimensions:135mm * 124mm * 35mm(5.31"*4.88"*1.37inch)
LCD size : 97mm * 78mm(3.81"*1.37")

Software Details and Advantages

Real time data uploading over LAN
Easy setup on special software via LAN
Remote setup via internet

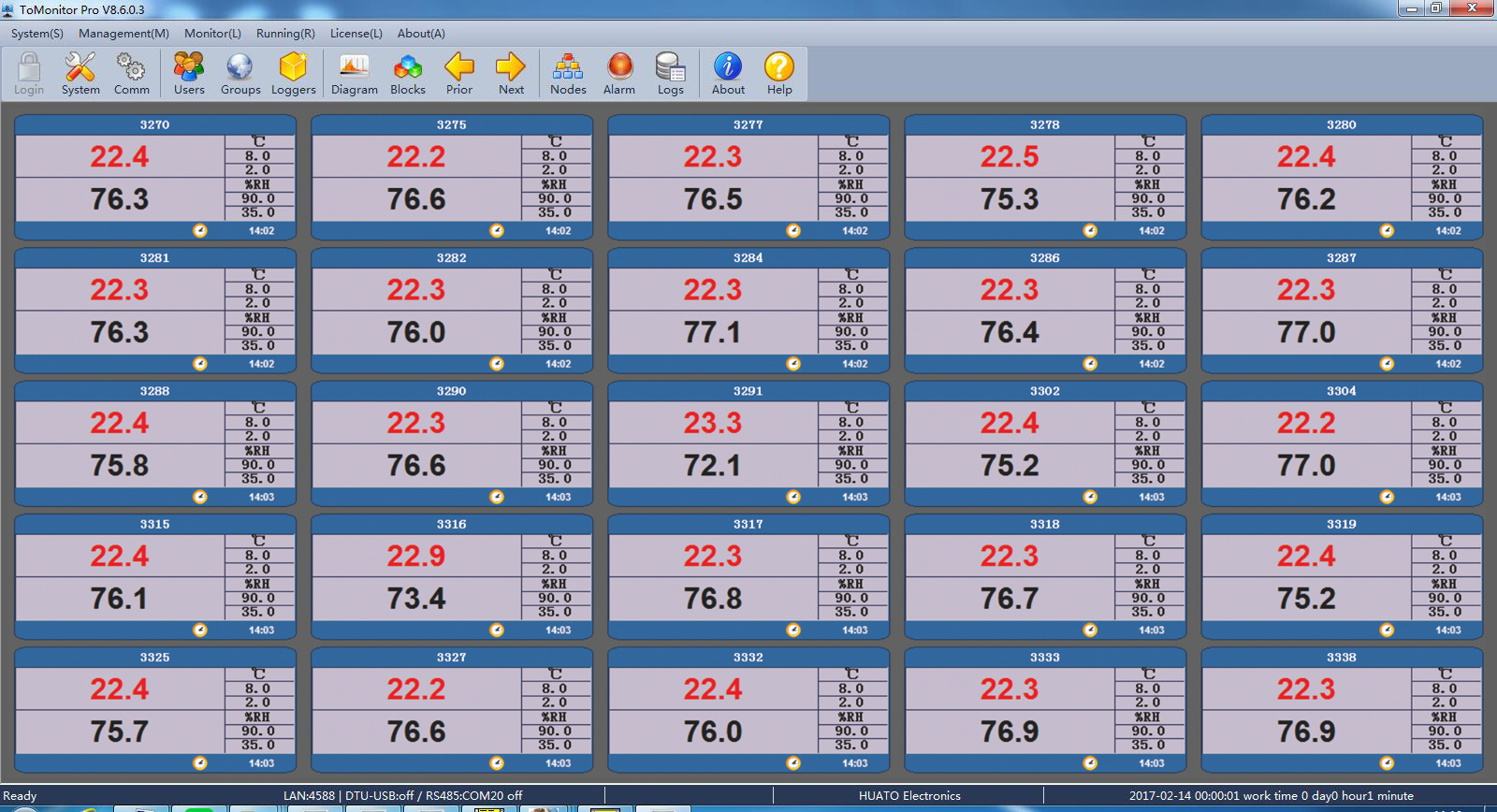

ToMonitor software:
Uploading the data automatically according to the users’setup interval and display the whole real time data of temperature & humidity on the ToMonitor software. All the setups can be done through the ToMonitor software such as refresh interval, Logging interval,alarm limit,GSM alarm, Email alarm ect.
ToClient software:
The history data can be searched by the ToClient software. The history data can be downloaded as BMP graph, EXCEL, TXT.

Technical Specification

Model list
Model	Sensor type	Measureing Range	Accuracy	Record Capacity	Resolution	Weight
S500-TH-RJ45	Internal temperature &humidity sensor	-20~70℃/0~100%RH	±0.5℃/±5%RH	4,3000	0.1°C / 0.1%RH	380g
S500-EX-RJ45	External temperature &humidity sensor	-40~85℃/0~100%RH	±0.5℃/±5%RH		0.1°C / 0.1%RH
S500-ET-RJ45	Single external temperature sensor	-40~+85℃	±0.5℃		0.1°C
S500-EPT-RJ45	Single External Temperature Sensor	-200~+200℃	+-0.5c		0.1c
S500-DT-RJ45	Dual external temperature sensor	-40~+85℃	±0.5℃		0.1°C
S520-TH-RJ45	Internal temperature &humidity sensor	-20~70℃/0~100%RH	±0.3℃/±3%RH		0.1°C / 0.1%RH
S520-EX-RJ45	External temperature &humidity sensor	-40~85℃/0~100%RH	±0.3℃/±3%RH		0.1°C / 0.1%RH
S580-TH-RJ45	Internal temperature &humidity sensor	-20~70℃/0~100%RH	±0.2℃/±2%RH	8,6000	0.1°C / 0.1%RH
S580-EX-RJ45	External temperature &humidity sensor	-40~85℃/0~100%RH	±0.2℃/±2%RH	8,6000	0.1°C / 0.1%RH

Technical support:

All the temperature sensor we used are original imported from USA and all the temperature&humidity sensors are original imported from Switzerland.All the IC we used are top brand worldwide.So quality and safety are guaranteed.

We have software copyright certification we can develop unique design for you!

After sale service:

Our working teams and sales teams can guarantee a fast and high efficiently after-sale service of our product sold to everywhere of the global.

We have stock for most of our product in major coorperation point worldwidely,which can shorten the supply time largely.So if have any questions,just contact us any time at your convenice!
